A) Introduction to steel connection products

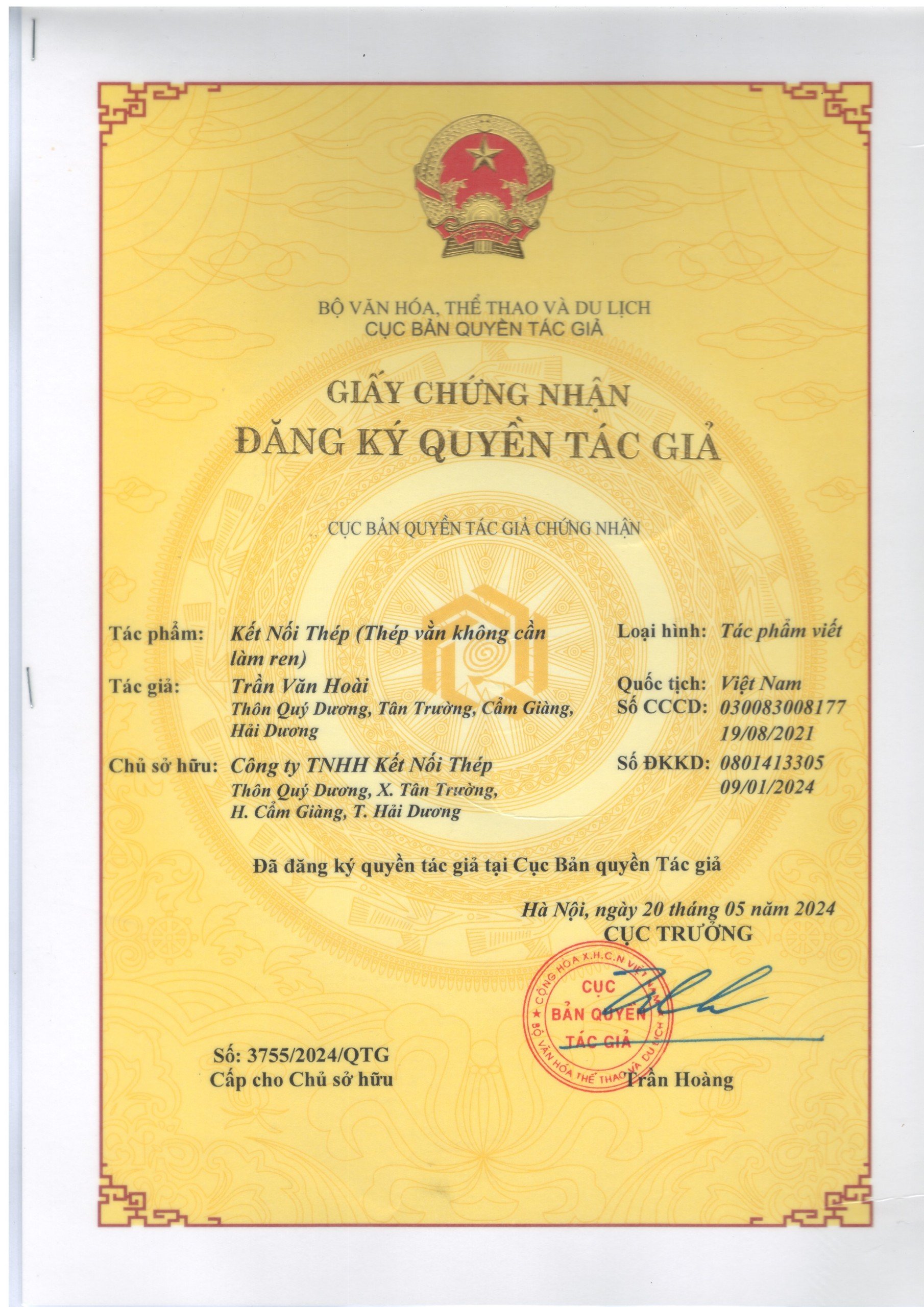

IP registration numbe 3755/2024/QTG
In civil,
industrial and high-rise buildings, Reinforcement is an important component
that can resist tensile and shear forces, playing the most important role in
all civil and industrial projects. However, a standard steel bar with a length of
~11.7m has a limit while projects are several hundred and thousands of meters
high. To have the required length in construction design, the steel bars are
connected together by tying, welding and threaded pipes. This form consumes a
lot of time and manpower, is also very unsafe and often causes labor accidents.
Understand the importance of
production safety, reducing time and labor. Steel Connection Company has
researched smart connection products, reducing time and labor costs, while
ensuring labor safety in production
B) Product superiority
▲No
supporting tools required

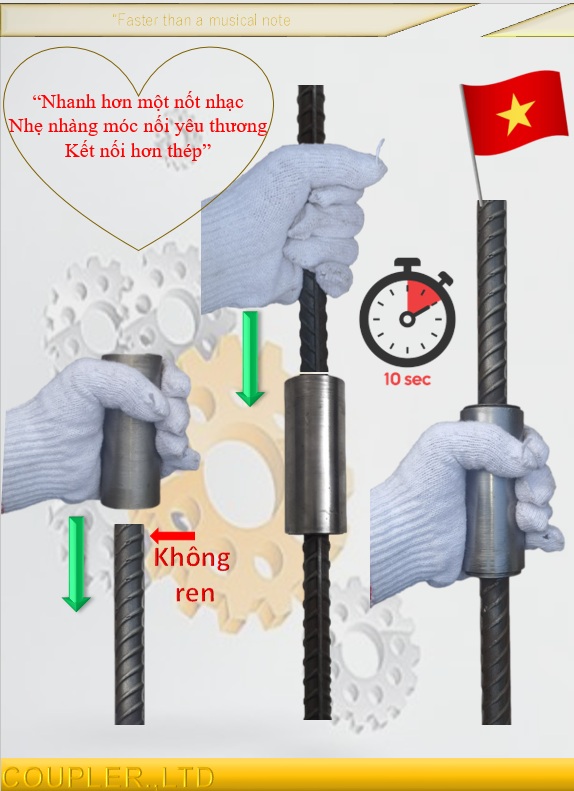

▲ Just plug in & press lightly and
you're done, no need for any other devices
▲ Whether vertical or horizontal, lying or
standing, just press lightly
▲ No need to cut or thread the
reinforcement (Whether it's European or American steel, just press it, no need
for any machining)
▲ Streamlined design passed testing with
"Zero” error rate
▲ Construction is one note faster, reducing
time and labor costs.
▲ Enhances ability to withstand shaking
caused by earthquakes
▲ Rest assured about quality and quickly
satisfy customers.
C) Product Details
The product is
designed based on a circular cylinder, inside the pillar there are internal and
external threads, fine thread pitch of 1.5-2.0mm, 2 pillar heads have
components made of 1.5-2.0mm fine external thread, the inside components of
these 2 pillar heads are designed with a beveled angle of 12-20 degrees. In these
2 pillar heads, each head has 3-4 sims to lock the steel to prevent the steel
from being pulled out of the pillar head; The middle part of the pillar is
designed with a fine threaded center plate with a thread pitch of 1.5-2.0mm to
be concentric when inserting the two ends of the construction steel bar. Inside
the pillar is installed a sim locking spring.
The product is made from steel
materials with a carbon content of 0.15-0.55%, The product is quenched (with
oil or chemicals) and tempered to suit the intended mechanical properties
according to the durability grades of construction steel.
The product is
applied to construction reinforcement. The mechanical properties of the product
are applied according to the strength levels of the steel. The product when
tested for load must meet the goal of pulling the steel without destroying the
steel joints
External dimensions and height
can be changed to use for different sizes of construction steel bars:
Smart coupler and thread coupler
+) Trong các công trình xây dựng dân dụng, công nghiệp và tòa nhà cao tầng, Cốt thép là thành phần quan trọng có khả năng chống được lực kéo và lực cắt, giữ vai trò quan trong nhất trong mọi công trình dân dụng và công nghiệp.
+) Tuy nhiên thanh thép tiêu chuẩn có chiều dài ~11.7m có giới hạn trong khi các công trình, cao vài trục đến hằng trăm và hằng nghìn mét. Để có chiều dài đáp ứng trong thiết kế xây dựng công trình thì các thanh thép đó được kết nối với nhau bằng hình thức buộc, hàn & bằng ống ren liên kết. Bằng hình thức này tiêu tốn rất nhiều thời gian, nhân lực và cũng rất mất an toàn thường xuyên xảy ra tai nạn lao động.
+) Hiểu được tầm quan trọng
trong an toàn sản xuất, giảm thời gian cũng như nhân công. Công ty ty Kết Nối
Thép đã nghiên ra sản phẩm liên kết thông minh, giảm các chi phí về thời gian, chi phí nhân
công và an toàn lao động trong sản xuất.
▲ Không cần công cụ hỗ trợ
▲ Chỉ cần cắm & nhấn nhẹ là xong không cần bất cứ thiết bị khác
▲ Dù dọc hay ngang dù nằm hay đứng nhấn nhẹ là vô
▲ Không cần cắt gọt hay làm ren cho cốt thép (Dù thép Âu hay Mỹ chỉ nhấn là
vô tất, không cần bất cứ 1 gia công nào)
▲ Thiết kế tinh gọn thông qua kiểm tra tỷ lệ nỗi bằng không "Zero”
▲ Thi công nhanh hơn một nốt nhạc, giảm thời gian và chi phí nhân công
▲ Tăng cường khả năng chịu rung lắc do động đất
▲ An tâm chất lượng và nhanh chóng làm hài lòng khách hàng
▲ Sản phẩm được thiết kế dựa trên hình trụ tròn trong trụ có ren trong, ren ngoài, bước ren mịn bước ren 1.5-2.0mm, 2 đầu trụ có linh kiện làm bằng ren ngoài kiểu ren mịn 1.5-2.0mm, bên trong linh kiện 2 đầu trụ này được thiết kế có góc vát 12-20 độ, Trong 2 đầu trụ này, mỗi đầu có 3-4 sim để khóa thép ngăn thép không bị rút ra khỏi đầu trụ.
▲ Phần giữa trong trụ được thiết kế 1 tấm căn tâm ren mịn có bước ren 1.5-2.0mm để đồng tâm khi đút 2 đầu thanh thép xây dựng vào. Bên trong trụ được cài một lò so khóa sim
▲ Sản phẩm được sản xuất từ vật liệu thép có hàm lượng carbon từ 0.15-0.55%, Sản phẩm được tôi luyện (bằng dầu hoặc hóa chất) và ram ủ mềm phù hợp với cơ tính mục đích dùng theo các cấp bền của thép xây dựng.
▲ Sản phẩm áp dụng cho cốt thép
xây dựng, Cơ tính của sản phẩm áp dụng theo các cấp bền của thép, sản phẩm khi
kiểm tra tải trọng phải đạt mục tiêu kéo đứt thép không phá hủy khớp nối thép.
